Nema & Waterproof Enclosure

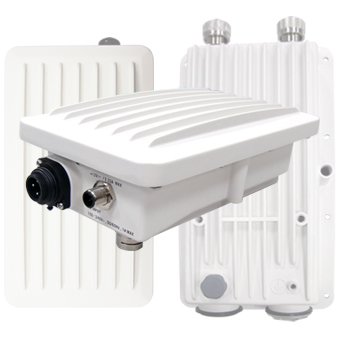

Alpine Cactus
A survivor in any extreme weather

Our AC (Alpine Cactus) enclosure is the smallest enclosure that can be made from either Polycarbonates by injection molding or aluminum or die casting. The outer dimensions of the enclosure are : 121.5 mm x 214.5 mm x 51.5 mm; Accommodating PCB dimensions up to 110-135 mm x 70-85 mm. The material is protected against UV rays. With just a small quantity of order, we can provide an enclosure adapted to any application. AC enclosure has an opening suited for two waterproof cable gland and/or waterproof ethernet, or any other interface connector from our M-smart® range, such as LED, USB, fiber optical, SIM, or power connection. AC can have up to 2 RF antenna access holes. Along with the enclosure, the customer can optionally choose a set of accompanying components: mast mounting, wall mounting, mounting with tilt option, fixing without tilting down, coaxial cable jumpers, surge arrestors, grounding cable, and so on. The whole set of enclosure is made of the highest quality materials and is intended for use even in the most demanding weather conditions. IP67 /NEMA 4, IEC/EN60950-22, EN62368 (to-be-discussed), RoHS, REACH, compliance.

  • AC, the smallest of our enclosures
  • Outer dimensions: 121.5 mm x 214.5 mm x 51.5 mm
  • Accommodating PCB dimensions up to: 110-135 mm x 70-85 mm (details with discussion)
  • 2 x M25 I/O data ports and 2 x RF/N ports
  • Aluminum Alloy Die Cast– SurTec® 650
  • Salt Spray 96hrs
  • IP67 / NEMA 6P full protection from dust and water ingress
  • EN60950.22 ready
  • Operating temperature range: -40°C to 120°C

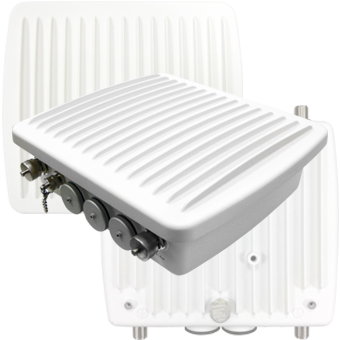

GTT Launch Box
An innovation mind starts here

Our GLB (GTT Launch Box) enclosure is the most adopted enclosure that can be made from either Polycarbonates by injection molding or aluminum by die casting. The outer dimensions of the enclosure are : 220 mm x 250 mm x 70 mm; ; Accommodating PCB dimensions up to : 121-140 mm x 170-184 mm . The material is protected against UV rays. With just a small quantity of order, we can provide an enclosure adapted to any application. GLB enclosure has an opening suited for four waterproof cable gland and/or waterproof ethernet, or any other interface connector from our M-smart® range, such as LED, USB, fiber optical, SIM, or power connection. GLB can have up to 6 RF antenna access holes. Along with the enclosure, the customer can optionally choose a set of accompanying components: mast mounting, wall mounting, mounting with tilt option, fixing without tilting down, coaxial cable jumpers, surge arrestors, grounding cable, and so on. The whole set of enclosure is made of the highest quality materials and is intended for use even in the most demanding weather conditions. IP67 /NEMA 4, IEC/EN60950-22, EN62368 (to-be-discussed), RoHS, REACH, compliance.

  • GLB, the most adopted enclosure
  • Outer dimensions: 220 mm x 250 mm x 70 mm
  • Accommodating PCB dimensions up to: 121-140 mm x 170-184 mm (details with discussion)
  • Option 1: 2 x M25 I/O data ports and 4 x RF ports
  • Option 2: 4 x M25 I/O data ports and 6 x RF ports
  • Aluminum Alloy Die Cast– SurTec® 650
  • Salt Spray 96hrs
  • IP67 full protection from dust and water ingress
  • EN60950.22 ready
  • Operating temperature range: -40°C to 120°C

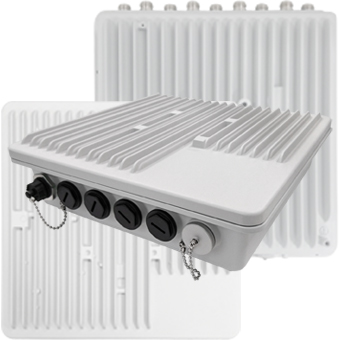

Formosa
A magic box sailing to a beautiful land

Our Formosa enclosure is the largest size enclosure we provide that can be made from either Polycarbonates by injection molding or aluminum by die casting. The outer dimensions of the enclosure are : 310 mm x 310 mm x 81.4 mm; ; Accommodating PCB dimensions up to : 159-205 mm x 240-260 mm. The material is protected against UV rays. With just a small quantity of order, we can provide an enclosure adapted to any application. Formosa enclosure has an opening suited for six waterproof cable gland and/or waterproof ethernet, or any other interface connector from our M-smart® range, such as LED, USB, fiber optical, SIM, or power connection. Formosa can have up to 6 RF antenna access holes. Along with the enclosure, the customer can optionally choose a set of accompanying components: mast mounting, wall mounting, mounting with tilt option, fixing without tilting down, coaxial cable jumpers, surge arrestors, grounding cable, and so on. The whole set of enclosure is made of the highest quality materials and is intended for use even in the most demanding weather conditions. IP67 /NEMA 4, IEC/EN60950-22, EN62368 (to-be-discussed), RoHS, REACH, compliance.

  • Formosa, the largest sized enclosure
  • Outer dimensions: 310 mm x 310 mm x 81.4 mm
  • Accommodating PCB dimensions up to: 159-205 mm x 240-260 mm (details with discussion)
  • 4 x RF ports to the top & 6 x M25 I/O data ports to the bottom
  • Aluminum Alloy Die Cast– SurTec® 650
  • Salt Spray 96hrs
  • IP67 full protection from dust and water ingress
  • EN60950.22 ready
  • Operating temperature range: -40°C to 120°C

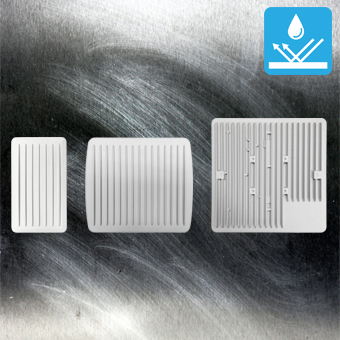

Waterproof Aluminum Enclosure

Solid and durable IP67/IP68 aluminum enclosures for electronics attached to panel or sector antennas in different frequencies. Shields against radio frequency interference (RFI) and electromagnetic frequency (EMF). Resistant to UV, rusting corrosion, 96 hours salt spray test and up to 320 hours special marine grade coating available. Operation temperature ranging from -40 degree to +85 degree with GTT special thermal dissipation solution up to 65 Watts. Durable gasket/ O-ring sealing mechanism for D2/D3 pulling test. Each size available with unique hole pattern for waterproof cable gland, waterproof ethernet connector and/or vent IP67 solution. Mast and wall mounting kits available. IP67 /NEMA 4, IEC/EN60950-22, EN62368 (to-be-discussed), RoHS, REACH, compliance. For special ATEX application, please contact our sales team for further engineering advice.

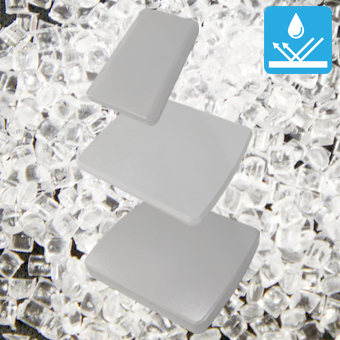

Waterproof Plastic Enlosure

Solid and durable IP67/IP68 plastic injection enclosures for electronics embedded/build-in panel or sector antennas in different frequencies, save you extra cost for installation & cabling, ect. Outdoor polycarbonate material for UV-resisting, rusting corrosion, and salt spray. Operation temperature ranging from -40 degree to +85 degree with GTT special thermal dissipation solution up to 65 Watts. Durable gasket/ O-ring sealing mechanism for D2/D3 pulling test. Each size available with unique hole pattern for waterproof cable gland, waterproof ethernet connector and/or vent IP67 solution. Mast and wall mounting kits available. IP67 /NEMA 4, IEC/EN60950-22, EN62368 (to-be-discussed), RoHS, REACH, compliance. For special ATEX application, please contact our sales team for further engineering advice.

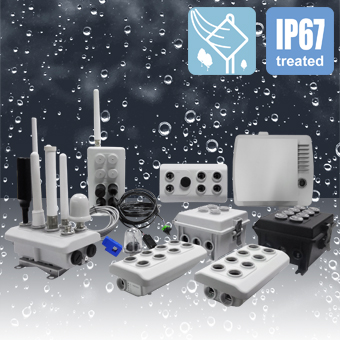

IP67 Guaranteed/NEMA Enclosure

Our IP67 Guaranteed NEMA Enclosure weatherproof outdoor enclosure solutions have been developed nearly 20 years from initial concept design. We have continuously improved this product design to reach the best die-cast aluminum enclosure in the world. Comply with in-house UL50E, IEC/EN 62368, EN60950-22 reliability testing criteria. Every assembled enclosure is 100% air-tight and fully traceable to assembly.

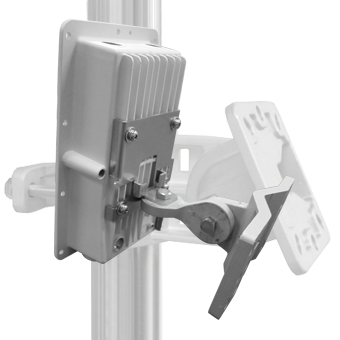

Mounting bracket

Antenna Mounting bracket and adapter board We understand how desperate you are to present your final piece with secure support, perfect display angle yet easy installation to the staff. GTT has over 10 years outdoor antenna installation experience with our worldwide customers. Our design includes stainless mounting bracket and die cast bracket, for wall mount, pole mount, cable mount, ceiling mount. You could simply complete your design with our various industrial grade mounting brackets!

M-Smart

Build-to-Configuration Cable & Antenna Accessories
There are a big range of standard cable and antenna tooled components can be choose from to upgrade your indoor system to a reliable and robust industrial outdoor devices, which can last for 10 years.

Cable gland, dust cover and sealings
It is critical that your system is 100% secured with reliable UL approved cable gland and the dust cap. With various color, suitable for different cable O.D. and applications, such as fiber optical, surge protection, PoE, power connection, we developed a wide range of glands and conduit to protect your equipment from damage and corrosion.
GTT design various interface connector and M-Smart assembly, from Power, LAN, PoE surge, SIM, LED/reset and circular series for different function. These interfaces suits our enclosure series for the best performance.

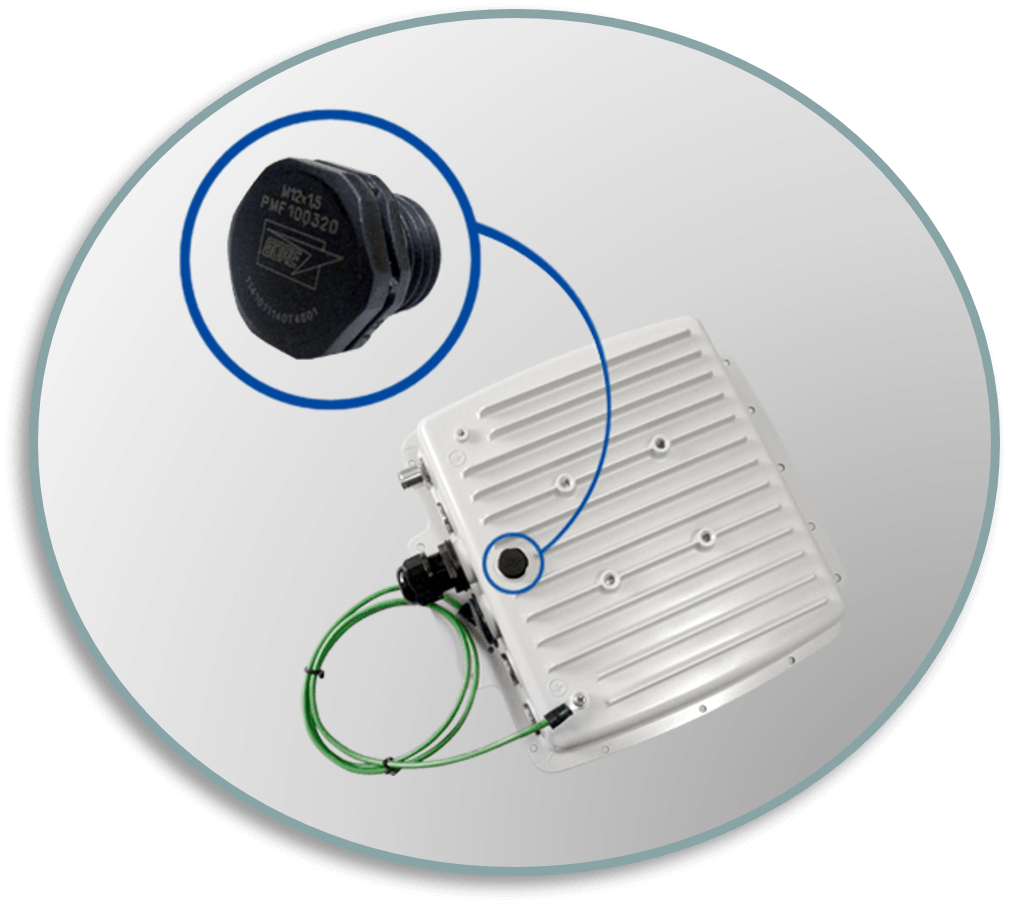

Gore Vent membrane technology

Protective Vents for Outdoor Electronics
Outdoor enclosures are continuously exposed to harsh environments such as rainstorms, dust, sand and high winds. During changing environmental conditions, pressure can build inside a sealed enclosure, putting stress on seals. Over time stress causes seals to fail, which allows water, corrosive liquids, salt and particulates to enter the enclosure and damage the internal electronics. Grand-tek uses Gore Vent membrane technology protecting sensitive electronics, ensuring all parts in the enclosure function well in extreme weather conditions.
Gore Vent membrane technology equalize pressure and reduce condensation by allowing air to flow freely into and out of sealed enclosures. At the same time, Gore Vent membrane technology provide a durable barrier to protect the electronics from contaminants. The result — improved reliability, increased safety and longer product life for your sealed electronic devices. Grand-tek stock most commonly used type of vents with Gore Vent membrane technology, ranging from PMF-12 to PMF-12M, while VSC adhesive series are subject to availability.

Gore Vent membrane technology - Lighting Enclosures
Lighting enclosure vents with Gore Vent membrane technology rapidly equalize pressures while blocking water and contaminants, for improved product performance and service life.
Gore Vent membrane technology equalize pressure when the enclosure is exposed to environmental temperature changes, or temperature changes related to the light turning on and off, a pressure differential is created between the enclosure air volume and the environment. These pressure changes put extreme stress on the housing seals, over time causing them to fail and allow moisture and other contaminants to enter. Gore Vent membrane technology equalize pressure by allowing air to pass through the membrane.
For more details, please make inquiry to our sales team.
