Grand-Tek Launch Box

An innovation mind starts here

Grand-Tek Launch Box An innovation mind starts here - Grand-Tek

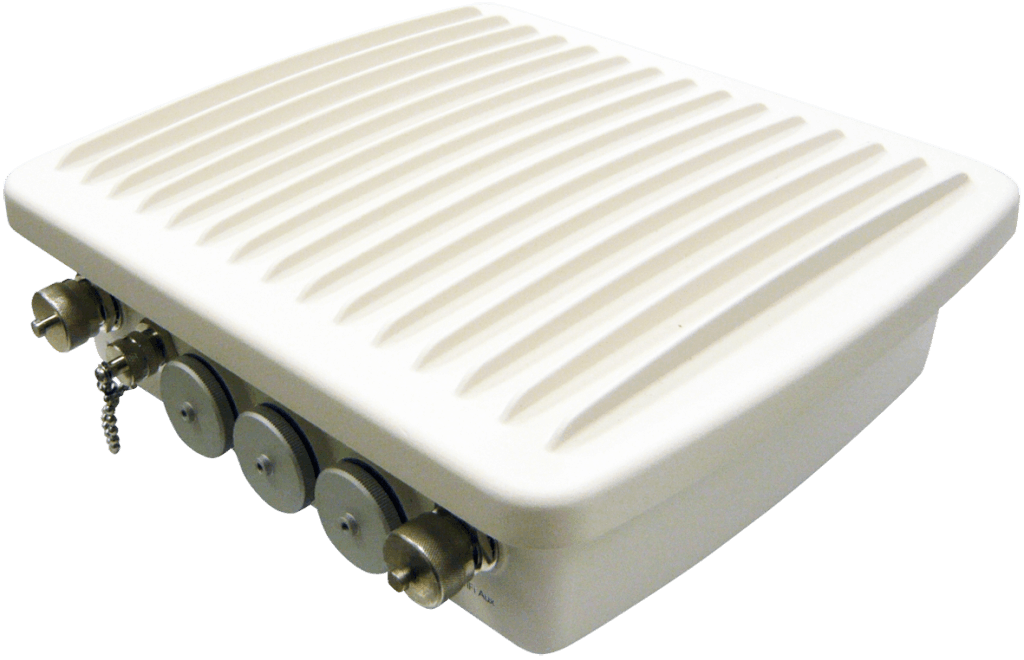

Our GLB (Grand-Tek Launch Box) enclosure is the most adopted enclosure that can be made from either Polycarbonates by injection molding or aluminum by die casting. The outer dimensions of the enclosure are : 220 mm x 250 mm x 70 mm; ; Accommodating PCB dimensions up to : 121-140 mm x 170-184 mm . The material is protected against UV rays. With just a small quantity of order, we can provide an enclosure adapted to any application. GLB enclosure has an opening suited for four waterproof cable gland and/or waterproof ethernet, or any other interface connector from our M-smart® range, such as LED, USB, fiber optical, SIM, or power connection. GLB can have up to 6 RF antenna access holes. Along with the enclosure, the customer can optionally choose a set of accompanying components: mast mounting, wall mounting, mounting with tilt option, fixing without tilting down, coaxial cable jumpers, surge arrestors, grounding cable, and so on. The whole set of enclosure is made of the highest quality materials and is intended for use even in the most demanding weather conditions. IP67 /NEMA 4, IEC/EN60950-22, EN62368 (to-be-discussed), RoHS, REACH, compliance.

  • GLB, the most adopted enclosure
  • Outer dimensions: 220 mm x 250 mm x 70 mm
  • Accommodating PCB dimensions up to: 121-140 mm x 170-184 mm (details with discussion)
  • Option 1: 2 x M25 I/O data ports and 4 x RF ports
  • Option 2: 4 x M25 I/O data ports and 6 x RF ports
  • Aluminum Alloy Die Cast– SurTec® 650
  • Salt Spray 96hrs
  • IP67 full protection from dust and water ingress
  • EN60950.22 ready
  • Operating temperature range: -40°C to 120°C

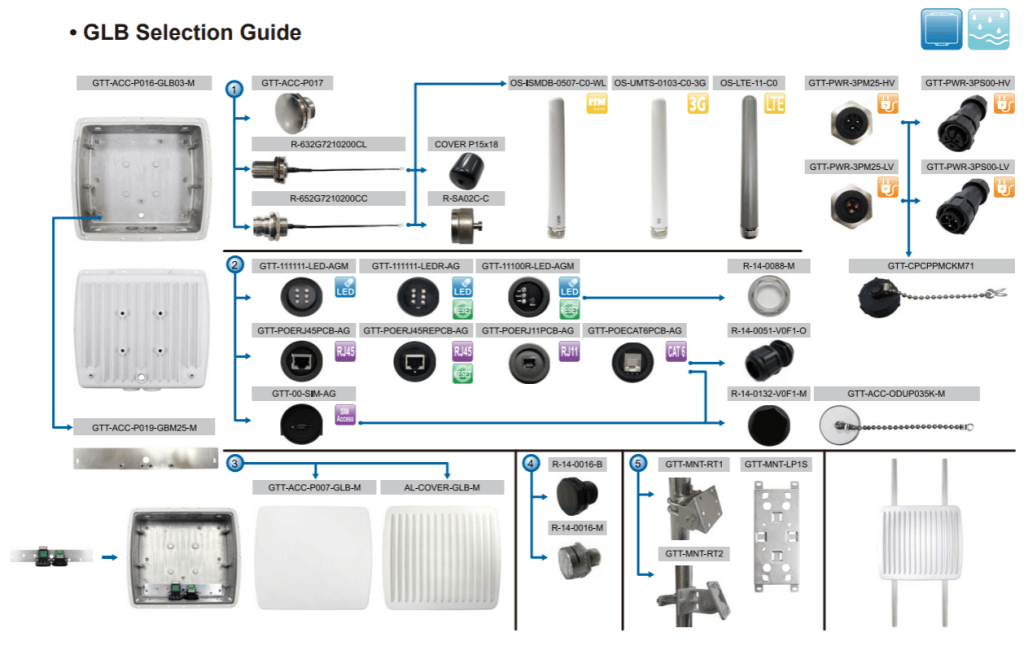

GLB Selection Guide - Grand-Tek
