Alpine Cactus - Small Plastic/Aluminum NEMA Enclosure


A survivor in any extreme weather

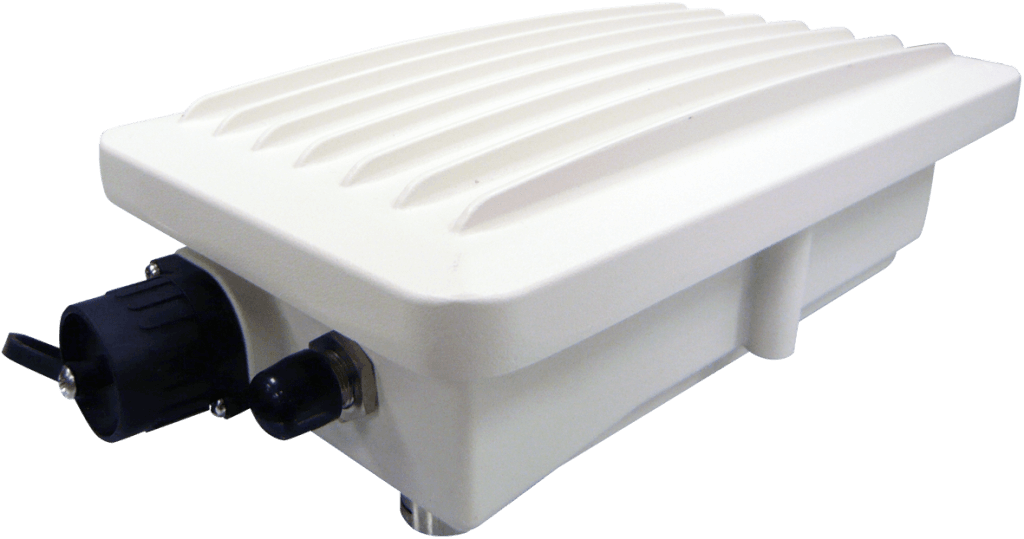

Alpine Cactus A survivor in any extreme weather - Grand-Tek


Our AC (Alpine Cactus) enclosure is the smallest enclosure that can be made from either Polycarbonates by injection molding or aluminum or die casting. The outer dimensions of the enclosure are : 121.5 mm x 214.5 mm x 51.5 mm; Accommodating PCB dimensions up to 110-135 mm x 70-85 mm. The material is protected against UV rays. With just a small quantity of order, we can provide an enclosure adapted to any application. AC enclosure has an opening suited for two waterproof cable gland and/or waterproof ethernet, or any other interface connector from our M-smart® range, such as LED, USB, fiber optical, SIM, or power connection. AC can have up to 2 RF antenna access holes. Along with the enclosure, the customer can optionally choose a set of accompanying components: mast mounting, wall mounting, mounting with tilt option, fixing without tilting down, coaxial cable jumpers, surge arrestors, grounding cable, and so on. The whole set of enclosure is made of the highest quality materials and is intended for use even in the most demanding weather conditions. IP67 /NEMA 4, IEC/EN60950-22, EN62368 (to-be-discussed), RoHS, REACH, compliance.


  • AC, the smallest of our enclosures
  • Outer dimensions: 121.5 mm x 214.5 mm x 51.5 mm
  • Accommodating PCB dimensions up to: 110-135 mm x 70-85 mm (details with discussion)
  • 2 x M25 I/O data ports and 2 x RF/N ports
  • Aluminum Alloy Die Cast– SurTec® 650
  • Salt Spray 96hrs
  • IP67 / NEMA 6P full protection from dust and water ingress
  • EN60950.22 ready
  • Operating temperature range: -40°C to 120°C

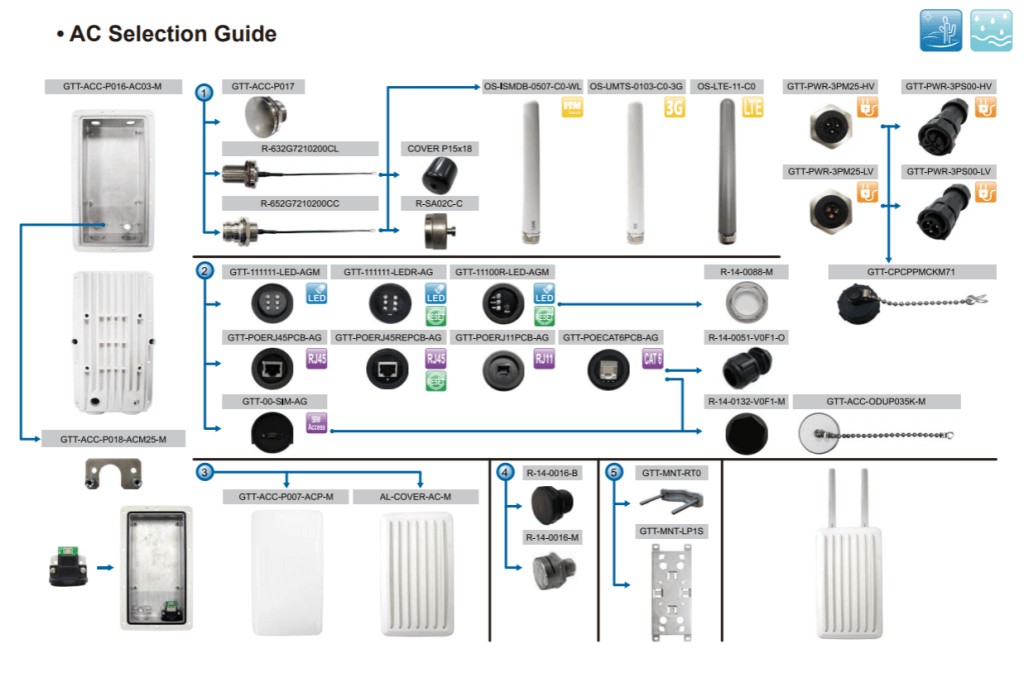

Alpine Cactus AC Selection Guide - Grand-Tek
