 > 解決方案 > 射頻連接器與跳線 > FAKRA 連接器

FAKRA 連接器

Grand-Tek FAKRA connector assembly range was been especially designed to fulfill the tough requirements of the automotive industry, such as assets tracking, antonymous car, cold chain management, smart parking, E-tolls, etc.
We offer 13 different colour FAKRA coding house applies to different applications.
The most common ones are Code C, D, I and Z, see below for the color scheme.

FAKRA 連接器 - Grand-Tek


For anti-vibration installation, we strongly suggest our customers to use our patented metal FAKRA range.

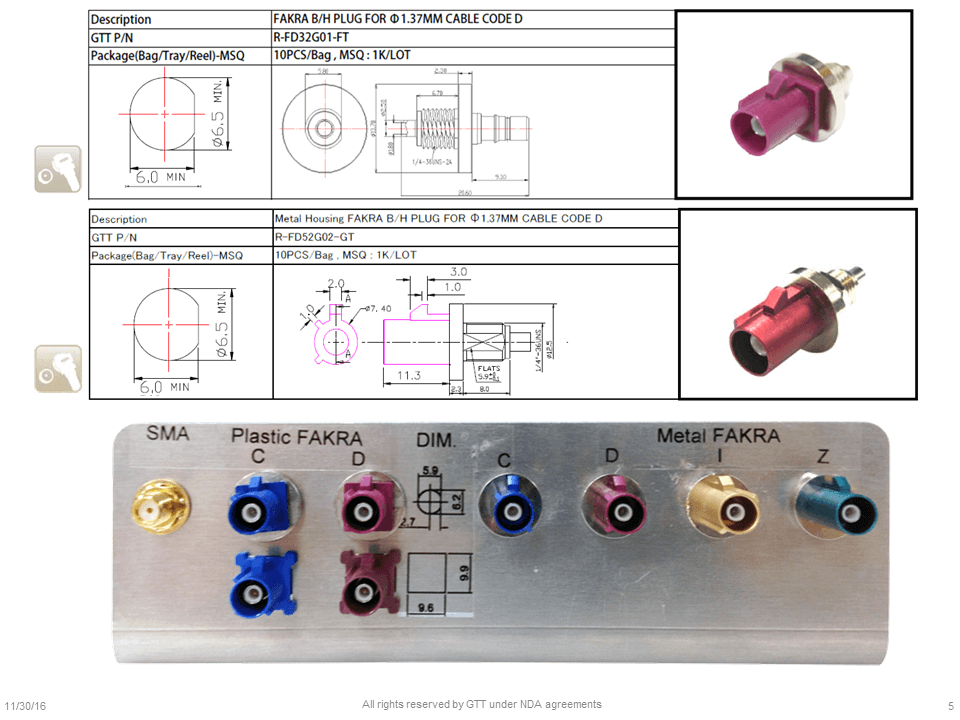

Take code C & D for comparison as these two are the most adapted in our application.

FAKRA 連接器 - Grand-Tek

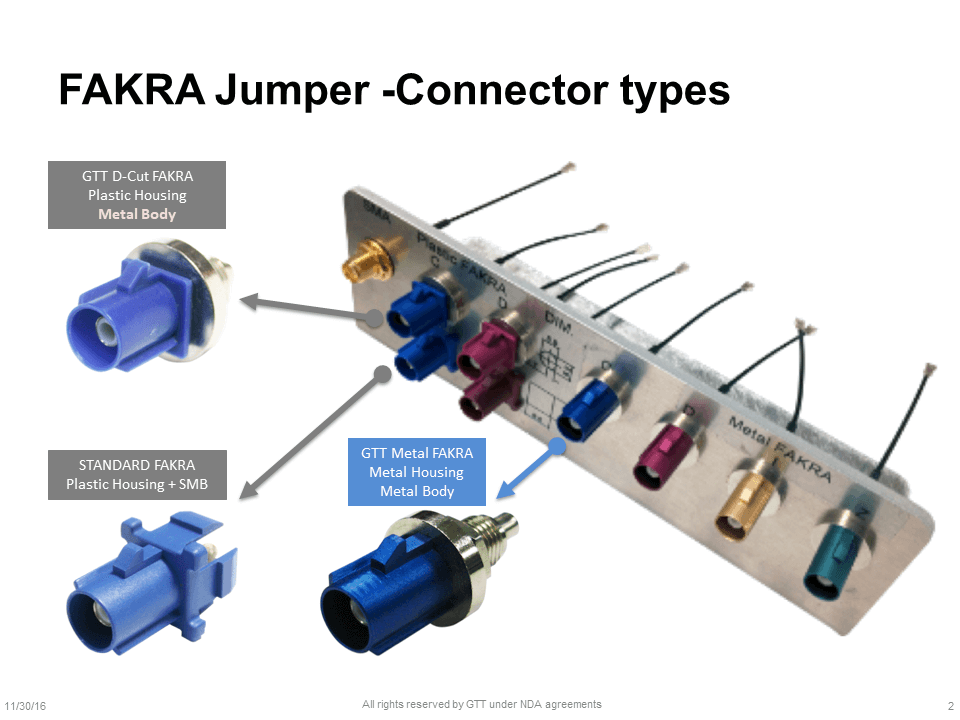

Compare to standard FAKRA, which is nomally plastic housing, both Grand-Tek plastic & metal FAKRA series emphasise the metal body.
The differences are specified in below picture.

FAKRA Jumper - Connector types - Grand-Tek

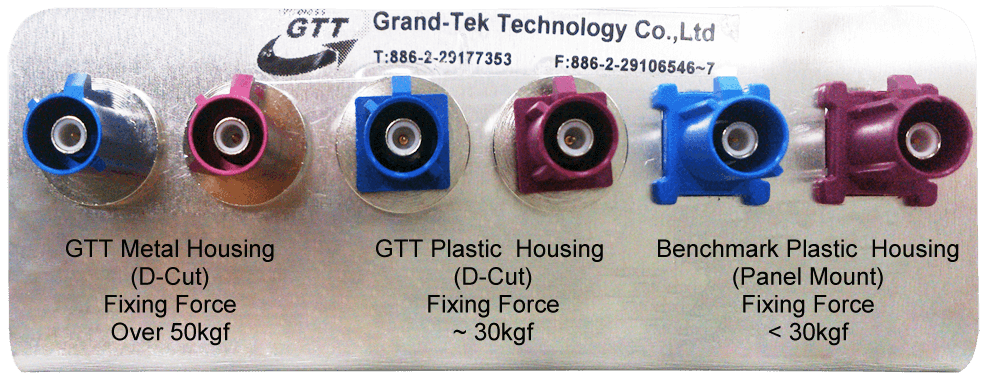

Our own FAKRA connectors ensure pulling force over 30kgf, which is far more than standard one.
We have done the connectoer pulling force test for three orientations. The result shows Grand-Tek own metal version can ensure the pulling force over 50kgf, leading this to the toughest one of the three.
Fakra Connector - U.FL Jumper Assembly - Grand-Tek
Even more, under harsh environment, we are able to offer IP67/68 waterproof metal FAKRA to keep your devices safe and dry.
If you need technical information, please do not hesitate to contact our sales team.

As standard one, it usually paired with SMB & RG174 or 316 cable. However, Grand-Tek could offer you other options like SMA with OD 1.37/1.32mm cables.
This enables you to customise your equipment & hardware despite the standard rules.

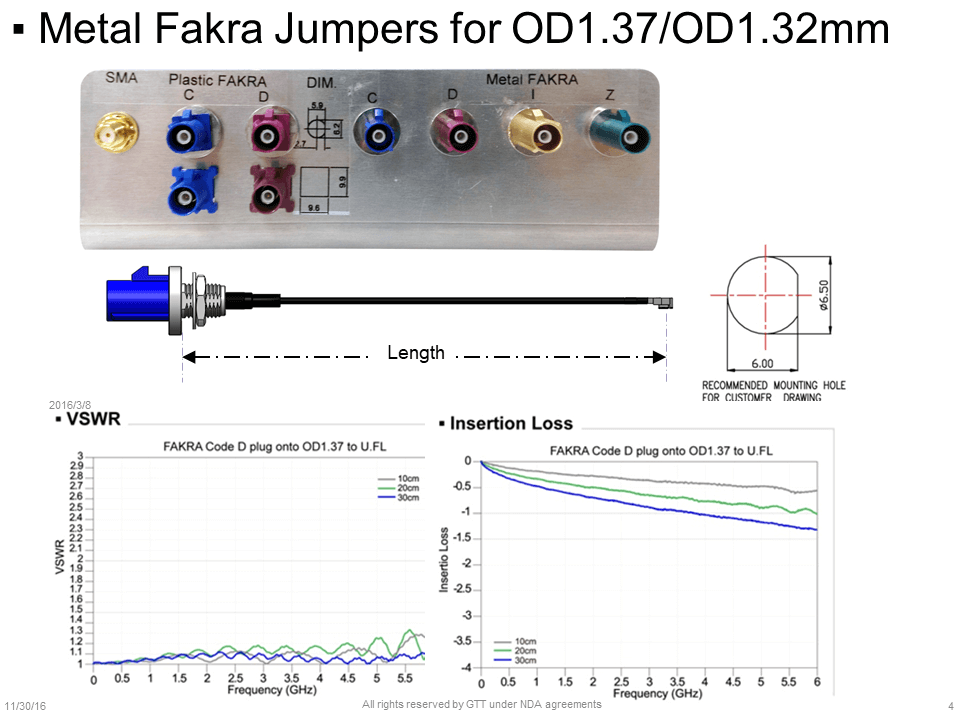

We have our plastic FAKRA testing result for your reference.

Metal Fakra Jumpers for OD1.37/OD1.32mm - Grand-Tek
Metal Fakra Jumpers for OD1.37/OD1.32mm - Grand-Tek


Againg, we are here to offer you an suitable solution so do not hesitate to contact us when you have questions!
