WiFi-7 Tri-Band Antenna

sma wifi antenna
P/N: OA-6E-13-CN



WiFi-7 Tri-Band Antenna - Grand-Tek


Description


For indoor WiFi antenna, take a look at the small size and flexibility, but also with good performance.



RF Specification


Frequency Range 2400~2500MHz / 5150~5850MHz / 5925~7125 MHz
Polarization Linear
HPBW / Horizontal 360°
HPBW / Vertical 45°
Peak Gain 1.6 dBi / 3.6 dBi / 3.7 dBi max.
Efficiency 71% / 74% / 72% min.
VSWR 2.0 typ.
Power Handing 2W(cw)
Impedance 50 Ohms
Connector RP-SMA Plug


Environmental & Mechanical Characteristics

Temperature: -20℃to +55℃
Humidity: 95% @55℃
Antenna Housing Color: Black
Antenna Housing Material: PC
Weight: 17.0g

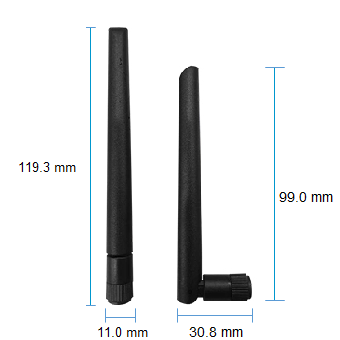

Dimensions: 119.3 mm(L)x30.8 mm(W) x11.0 mm(OD)
