Wi-Fi 6E/7 Tri-Band Antenna
2.4 ghz antenna
P/N: OA-6E-13-CN
Description
Working Frequency: 2.4 / 5.8 / 7.125GHz.Support the latest WiFi 7 regulation and extension of the WiFi coverage.
RF Specification
| Frequency Range |
2400~2500 MHz / 5150~5850MHz / 5925~7125 MHz |
| Polarization |
Linear |
| HPBW / Horizontal |
360° |
| HPBW / Vertical |
45° |
| Peak Gain |
2.4 dBi / 5.6 dBi / 7.6 dBi max. |
| VSWR |
2.0 typ. |
| Power Handing |
2W(cw) |
| Impedance |
50 Ohms |
| Connector |
N Plug |
Environmental & Mechanical Characteristics
Temperature: -40℃to +80℃
Humidity: 95% @55℃
Waterproof Rating: IPX7
Antenna Housing Color: White
Antenna Housing Material: ASA, UV Resistance
Weight: 78.5 g

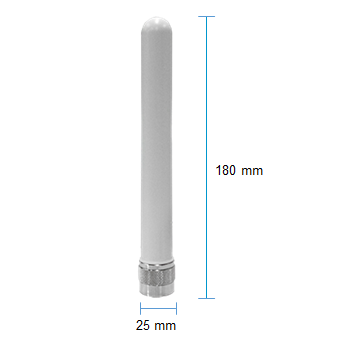

Dimensions: 180.0mm(L)x25.0mm(OD)
