Wi-Fi 6E/7 Tri-Band Antenna
P/N: OA-6E-03AW-C5R
Description
With 90degree design not only helps you with an easier installation; This antenna is also in accordance with IP67 .
RF Specification
| Frequency Range |
2400~2500 MHz / 5150~5850MHz / 5925~7125 MHz |
| Polarization |
Linear |
| HPBW / Horizontal |
360° |
| HPBW / Vertical |
45° |
| Peak Gain |
2.3 dBi / 1.9 dBi / 2.8 dBi max. |
| VSWR |
2.0 typ. |
| Power Handing |
2W(cw) |
| Impedance |
50 Ohms |
| Connector |
RP-SMA Plug |
Environmental & Mechanical Characteristics
Temperature: 10℃ to +55℃
Humidity: 95% @55℃
Antenna Housing Color: Black
Antenna Housing Material: Material: PC
Weight: 17.0g

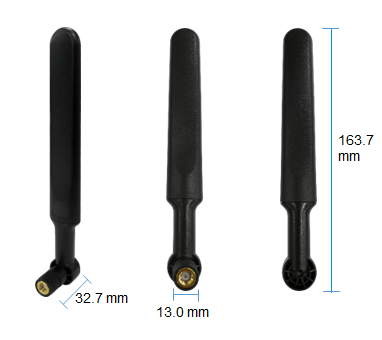

Dimensions: 163.7mm(L)x32.7mm(W)x13.0mm(OD)
