Wi-Fi 5G / 6G Dual-Band Antenna
P/N: OA-6E-18-CN-56
RF Specification
| Frequency Range |
5150~5850MHz / 5925~7125 MHz |
| Polarization |
Linear |
| HPBW / Horizontal |
360° |
| HPBW / Vertical |
45° |
| Peak Gain |
3.6 dBi / 3.8 dBi max. |
| VSWR |
2.0 typ. |
| Power Handing |
2W(cw) |
| Impedance |
50 Ohms |
| Connector |
N Plug |
Environmental & Mechanical Characteristics
Temperature: -40℃to +70℃
Humidity: 95% @55℃
Waterproof Rating: IPX7
Antenna Housing Color: White
Antenna Housing Material: ASA, UV Resistance
Weight: 69.0g

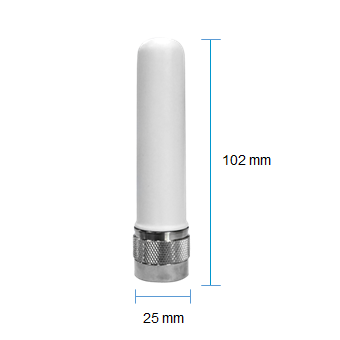

Dimensions: 102.0mm(L)x25.0mm(OD)
