Mushroom Wi-Fi 6E/7 Tri-Band Antenna

waterproof Wi-Fi antenna
P/N: OE-GPSGLO-02-CN



Mushroom Wi-Fi 6E/7 Tri-Band Antenna - Grand-Tek


Description

This cute & IK09-certified waterproof Wi-Fi antenna supports frequency from 2.4GHz to a maximum 7.125GHz.



RF Specification


Frequency Range 2400~2500 MHz / 5150~5850MHz / 5925~7125 MHz
Polarization Linear
HPBW / Horizontal 360°
HPBW / Vertical 45°
Peak Gain 0.7 dBi / 2.9 dBi / 2.8 dBi max.
VSWR 2.0 typ.
Power Handing 2W(cw)
Impedance 50 Ohms
Connector N Plug


Environmental & Mechanical Characteristics

Temperature: -30℃to +70℃
Humidity: 95% @55℃
Waterproof Rating: IP67
Antenna Housing Color: Cool Gray 2C
Antenna Housing Material: PC
Weight: 90.0g

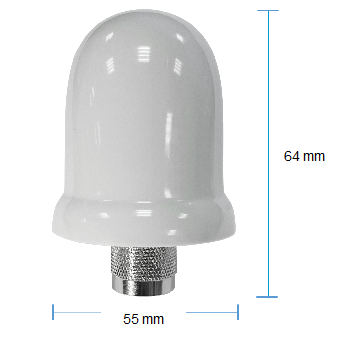

Dimensions: 64.0mm(L)x55.0mm(OD)
IK Rating: IK09
