Waterproof Interface Connectors (M-Smart)



Grand-Tek design various interface connector and M-Smart assembly, from power, LAN, PoE surge, SIM, LED/reset and circular series for different function.
These interfaces suit out enclosure series for the best performance.

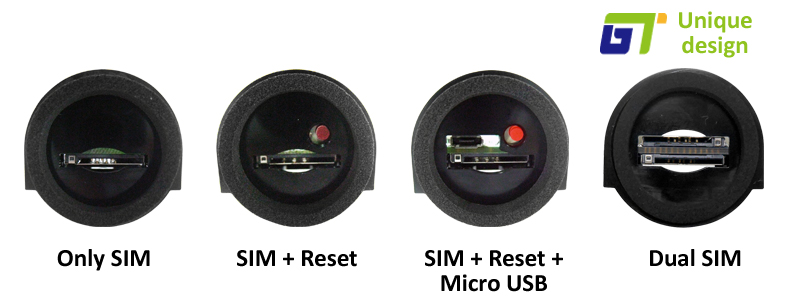

SIM series

Waterproof Interface Connectors (M-Smart) - Grand-Tek

  • IP67/IP68
  • SIM card slot with reset
  • Hybrid I/O integration
  • Customization design

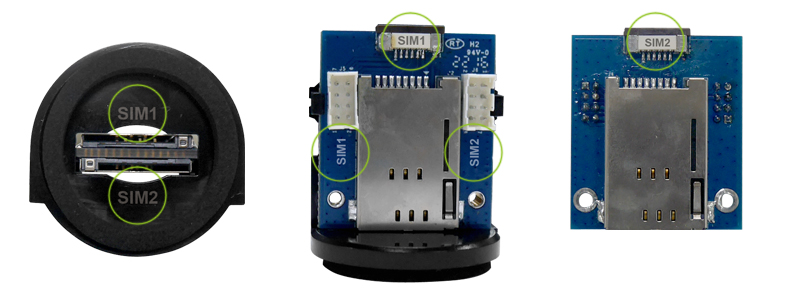

Dual SIM product feature Introduce

Waterproof Interface Connectors (M-Smart) - Grand-Tek

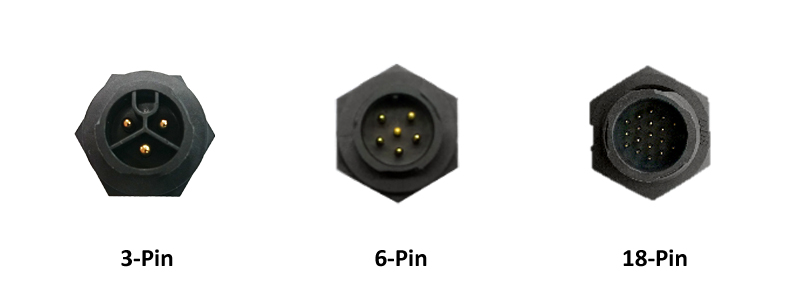

Circular series

Waterproof Interface Connectors (M-Smart) - Grand-Tek

  • M12 /M25 available
  • 2-18 Pin power/data transmission
  • Current rating: up to 4A
  • Voltage Rating: 48V AC
  • Customization design

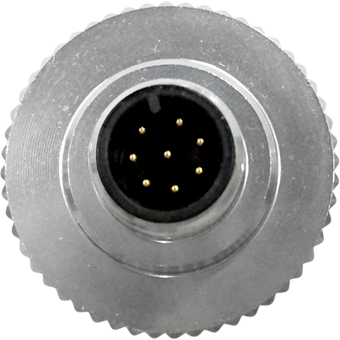

Power series

Waterproof Interface Connectors (M-Smart) - Grand-Tek

  • IP67/IP68
  • 2-18 Pin power/data transmission
  • Robust metal housing
  • Current Rating: up to 15A
  • Voltage Rating: 250V AC

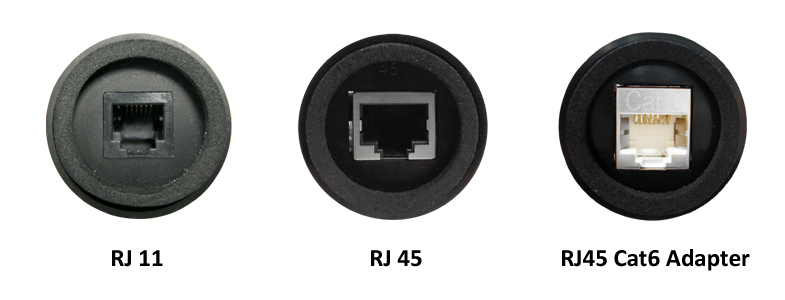

LAN series

Waterproof Interface Connectors (M-Smart) - Grand-Tek

  • IP67/IP68
  • RJ45 CAT6/CAT5e RJ11 modular connector
  • Build-in PoE splitter function available

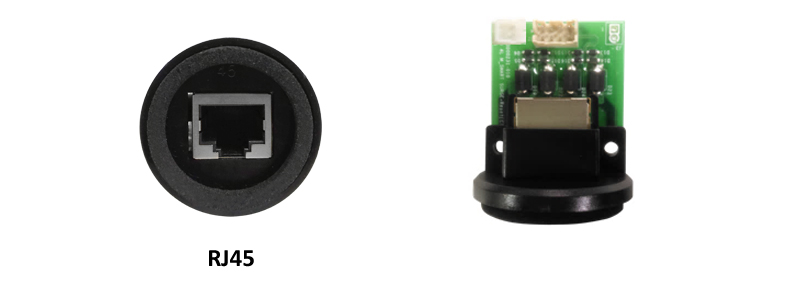

PoE Surge series

Waterproof Interface Connectors (M-Smart) - Grand-Tek

  • IP67/IP68
  • RJ45 module
  • 802.3 af/at certified
  • ESD protection

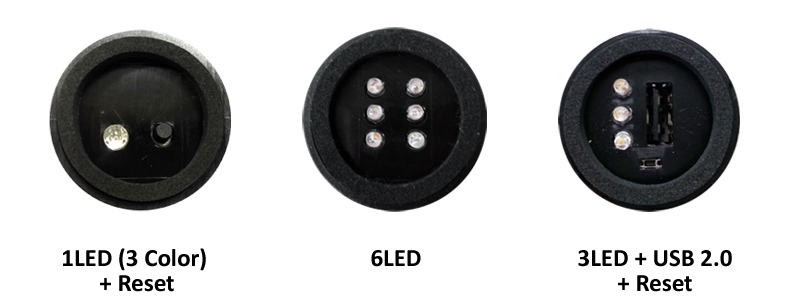

LED/Reset series

Waterproof Interface Connectors (M-Smart) - Grand-Tek

  • IP67/IP68
  • LED 1~6 + Reset/USB
  • Hybrid I/O integration
  • Customization design

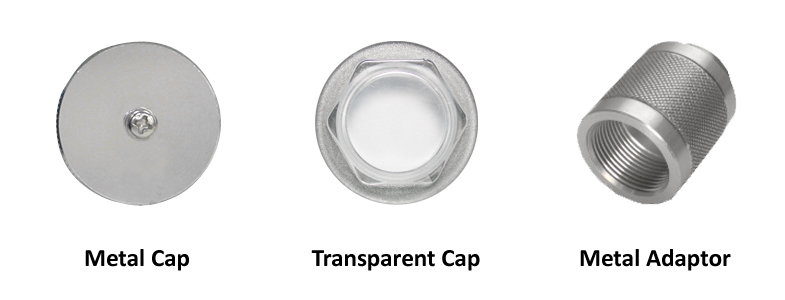

Other

Waterproof Interface Connectors (M-Smart) - Grand-Tek

  • IP67/IP68 Cap
  • Plastic/Metal Adaptor
  • Customization design
  • Lanyard available for permanent attachment.


M12 Connectors

The M12 connector is a fairly popular circular cable end connector and is widely used in industrial applications. 12 means the diameter of the joint is 12mm. The exact geometry and wire configuration of the M12 connector (usually at the end of a PUR jacketed or PVC jacketed cable) is established by the International Electrotechnical Commission's IEC 61076-2-101 standard.
Grand-tek IP67 Waterproof/NEMA Weatherproof Enclosure & Boxes can be matched with Circular series of M-smart. According to customer requirements. M12 adapter configuration can also be provided.



Build-to-Configuration Cable & Antenna Accessories

There are a big range of standard cable and antenna tooled components can be choose from to upgrade your indoor system to a reliable and robust industrial outdoor devices, which can last for 10 years.



Cable gland, dust cover and sealings

It is critical that your system is 100% secured with reliable UL approved cable gland and the dust cap. With various color, suitable for different cable O.D. and applications, such as fiber optical, surge protection, PoE, power connection, we developed a wide range of glands and conduit to protect your equipment from damage and corrosion.
GTT design various interface connector and M-Smart assembly, from Power, LAN, PoE surge, SIM, LED/reset and circular series for different function. These interfaces suit our enclosure series for the best performance.
