IPEX MHF vs U.FL Series Comparison

Recently, we have been asked frequently what is the difference between my U.FL & IPEX cable assembly? What type should I transfer from U.FL to IPEX without any hassles? Are they compatible to my device? Or are they the same?

The difference between U.FL & IPEX

HRS. UFL is the ultra-miniature connector developed by Hirose Company in Japan. The most frequency of use is 6GHz. The cable can be Φ0.81mm~Φ1.37mm , and it has different names according to the cable used.
For example, U.FL-LP(V): Φ0.81mm / U.FL-LP-068:Φ1.13mm / U.FL-LP-066:Φ1.32mm / U.FL-LP-088:Φ1.37mm / U.FL-LP(P)-068 : Φ1. 13mm (gold connector)

MHF1 is compatible with HRS standard U.FL cable assembly.
But MHF 4L is not compatible with HRS standard U.FL, but is suitable for 5G(M.2) Module type.

Grand-Tek IPEX & HRS Mini-Coaxial Series Compatible Charts - Grand-Tek

If your device is for 5G applications, IPEX MHF4 is the type for you. However, if yours are for WiFi, 3G or 4G use, U.FL types are the most common ones.

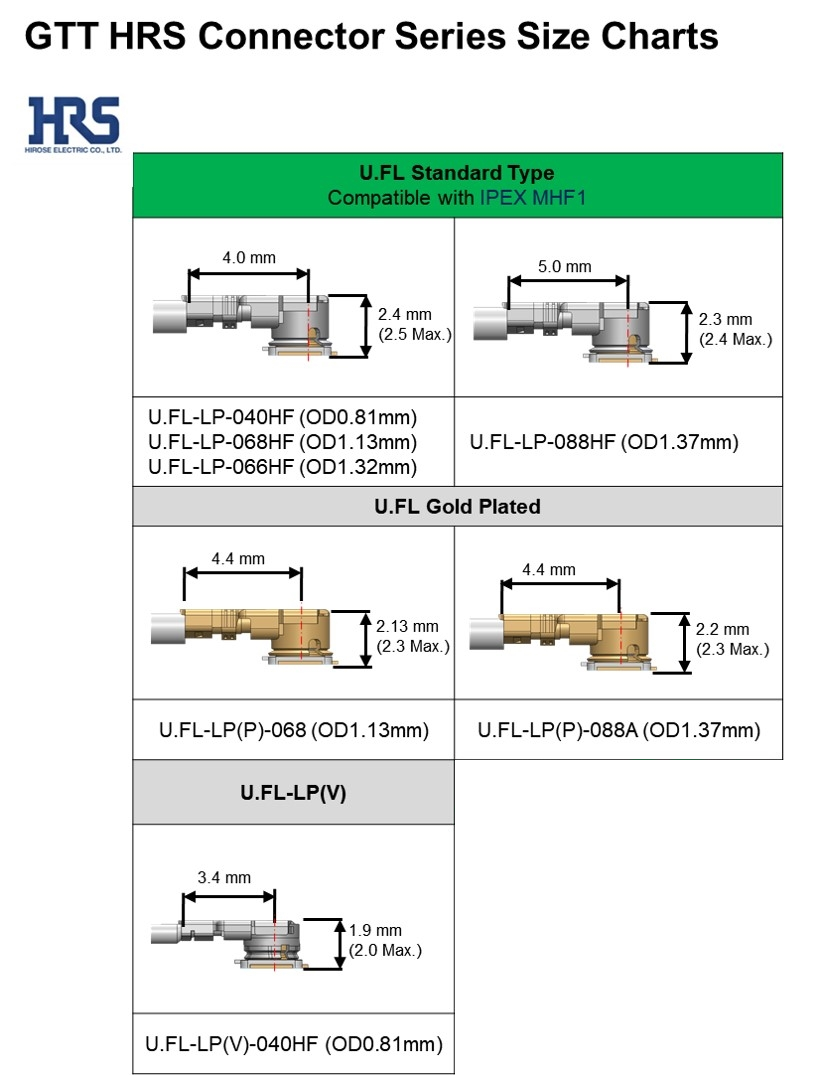

Need upgrade? IPEX & U.FL size charts are here for your references.

IPEX MHF vs U.FL Series Comparison - Grand-Tek
IPEX MHF vs U.FL Series Comparison - Grand-Tek
Click here to get quote!

While 4 colours (grey, black, white, blue) are the most common adoptions, we are able to offer up to 10 different colour of cable for easy identification within your RF systems. EMI shielded type cable is also available for customised jumpers.

IPEX MHF vs HRS U(W).FL Series Comparison - Grand-Tek

For both types, GTT could offer the most production volume up to 45Kpcs per day & 1.1KKpcs monthly. However, initial pre-MP quantity under 1Kpcs per batch is also welcomed to discuss.

Do you have any other thoughts to share? Still do not sure which type is the most suitable for you? Or any other series or antenna integration services, please contact our sales team for further discussion.
