 > SOLUTIONS > Data Cable Harness > Hirose IX Series

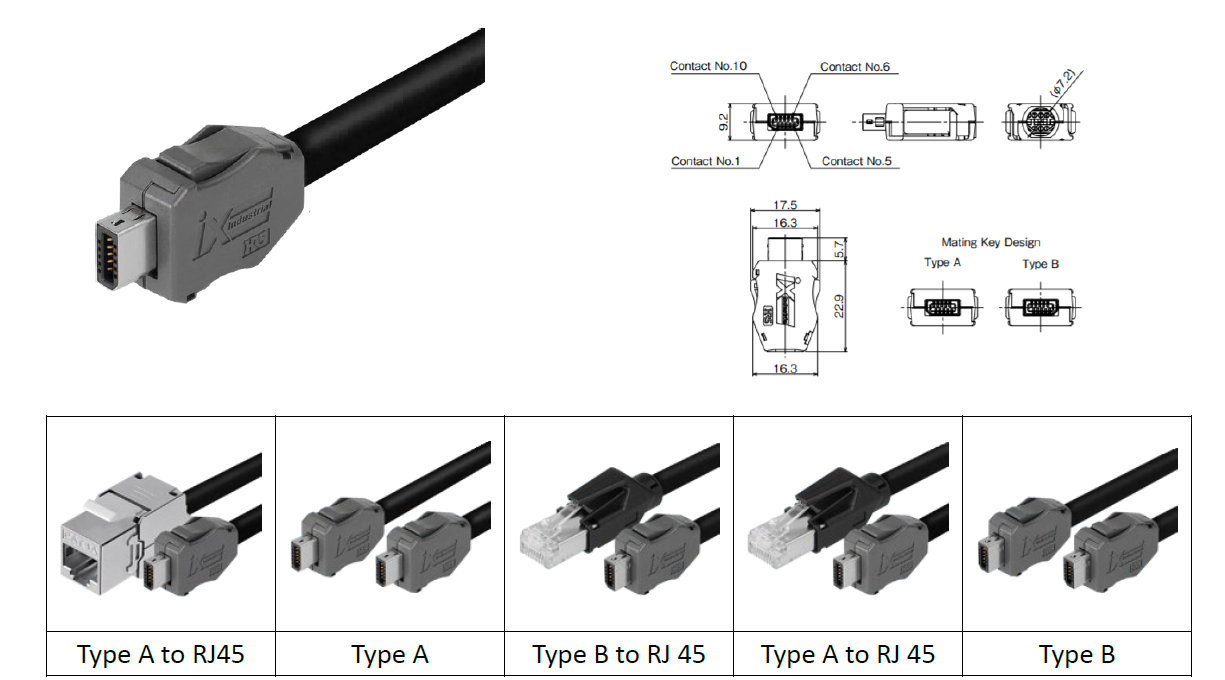

Hirose IX Series



  • Multi-purpose, compact I/O connector for industrial machinery.
  • IEC Standard IEC 61076-3-124 complaint
  • Compact, robust and supports high speeds
  • High EMC resistance

Product Specifications
Rated Current: All Pins→ 4 Pins :Pin No.1, 2, 6 and 7 ; 1.5A→3A
Operating Temperature (Note 1) : -40 to +85℃
Storage Temperature Range : -30 to +60℃
Rated Voltage : 50V AC / 60V DC


Hirose IX Series - Grand-Tek
Hirose IX Series - Grand-Tek

For more information please contect us.
