GTT Mushroom For GPS/GLONASS Outdoor Antenna
small GPS antenna / external GPS antenna
P/N: OE-GPSGLO-02-CN
Description
The external GPS antenna is designed by GTT itself. It has IK09 protection level and IP67 waterproof and dustproof level. High protective properties suitable for installation in outdoor environments. And the volume height is only 64mm. It is a small GPS antenna exclusively developed by GTT. Its frequency band is 1575~1602MHz, supporting the US GPS system and the Russian GLONASS system.
GPS/GLONASS Overall Antenna Specification
| Center Frequency |
1575.42~1602MHz |
| Zenith Gain (0°) 1575.42/ 1602 |
28.2±3 dBic. / 28.1±3 dBic |
| Output Impedance |
50 ohm |
| Output V.S.W.R |
2.0 typ. |
| Operation Voltage |
DC=3.0~5.0 V |
| Current |
DC=6.5±2 mA |
GPS/GLONASS LNA
| Center Frequency |
1575.42~1602MHz |
| Gain (1575.42 MHz / 1602 MHz) |
28±3 dB/ 28±3 dB |
| Noise Figure |
3.0 dB typ. |
| Filter Out band Attenuation |
25 dB typ. @±50MHz |
| Output V.S.W.R |
2.0 dB typ. |
| Operation Voltage |
DC=3.0 V~5.0 V |
| Current |
DC=6.5±2 mA |
Environmental & Mechanical Characteristics
Temperature: -30℃to +70℃
Humidity: 95% @55℃
Waterproof Rating: IP67
Antenna Housing Color: Cool Gray 2C
Antenna Housing Material: Material: PC
Weight: 105.0g

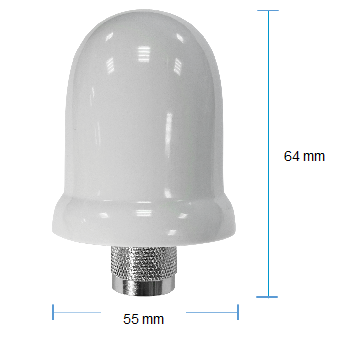

Dimensions: 64.0mm(L)x55.0mm(OD)
IK Rating: IK09
