GTT Mushroom For 5G Outdoor Antenna
P/N: OE-L71-02-04-CN-5G
Support Band
| LTE BAND |
FDD |
1,2,3,4,5,7,8,12,13,14,25,26,28,30,66,71 |
| TDD |
41,42,43,48 |
| FR1 |
FDD |
n1,n2,n3,n5,n7,n8,n12,n14,n28,n30,n66,n71 |
| TDD |
n38,n41,n46,n77,n78,n79 |
| GNSS |
na |
L1,L5 |
RF Specification
| Frequency Range |
617~960 / GNSS L1&L5 / 1710~2200 / 2300~2690 / 3300~4200 / 4400~5000 / 5150~5925 MHz |
| Polarization |
Linear, Vertical |
| HPBW / Horizontal |
360° |
| HPBW / Vertical |
60° |
| Peak Gain |
2.4 dBi / 2.7 dBi / 3.1 dBi / 3.5 dBi / 3.5 dBi / 5.2 dBi / 6.3 dBi max. |
| Efficiency |
31% / 24% / 49% / 54% / 77% / 38% / 72% min. |
| VSWR |
4.0 max.:1 / 3.0 max.:1 |
| Power Handing |
2W(cw) |
| Impedance |
50 Ohms |
| Connector |
N Plug |
Environmental & Mechanical Characteristics
Temperature: -30℃to +70℃
Humidity: 95% @55℃
Waterproof Rating: IP67
Antenna Housing Color: Cool Gray 2C
Antenna Housing Material: Material: PC
Weight: 96.0g

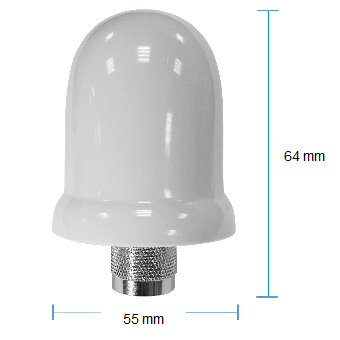

Dimensions: 64.0mm(L)x55.0mm(OD)
