GTT 5G Outdoor Antenna (Global)
P/N: OA-L71-18-03-CN-5G
Support Band
| LTE BAND |
FDD |
1,2,3,4,5,7,8,12,13,14,25,26,28,30,66,71 |
| TDD |
41,42,43,48 |
| FR1 |
FDD |
n1,n2,n3,n5,n7,n8,,n12,n14,n28,n30,n66,n71 |
| TDD |
n38,n41,n46,n77,n78,n79 |
| GNSS |
TDD |
n38,n41,n46,n77,n78,n79 |
| na |
L1,L5 |
RF Specification
| Frequency Range |
617~960 / GNSS L1&L5 / 1710~2200 / 2300~2690 / 3300~4200 / 4400~5000 / 5150~5925 MHz |
| Polarization |
Linear, Vertical |
| HPBW / Horizontal |
360° |
| HPBW / Vertical |
60° |
| Peak Gain |
2.4 dBi / 2.7 dBi / 3.1 dBi / 3.5 dBi / 3.5 dBi / 5.2 dBi / 4.9 dBi max. |
| Efficiency |
24% / 59% / 66% / 63% / 74% / 76% / 55% min. |
| VSWR |
5.0 max.:1 / 3.0 max.:1 |
| Power Handing |
2W(cw) |
| Impedance |
50 Ohms |
| Connector |
N Plug |
Environmental & Mechanical Characteristics
Temperature: -40℃to +70℃
Humidity: 95% @55℃
Waterproof Rating: IPX7
Antenna Housing Color: White
Antenna Housing Material: ASA, UV Resistance
Weight: 69.0g

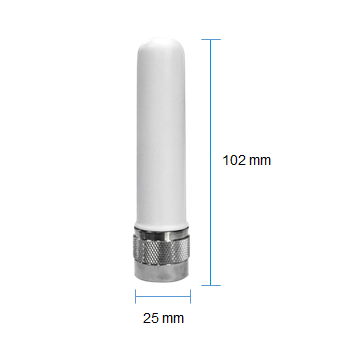

Dimensions: 102.0mm(L)x25.0mm(OD)
