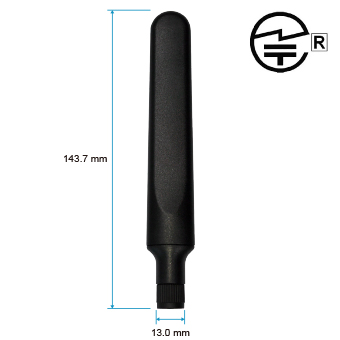

GTT 5G FR1 Antenna For Japan

P/N: OA-L71-05-03W-C5-5G-J



GTT 5G FR1 Antenna For Japan - Grand-Tek


RF Specification


Frequency Range 617~960 / 1427~1559 / 1710~2200 / 2300~2690 / 3300~4200 / 4400~5000 / 5150~5925 MHz
Polarization Linear, Vertical
HPBW / Horizontal 360°
HPBW / Vertical 60°
Peak Gain 1.8 dBi / -0.6 dBi / 0.1 dBi / 2.4 dBi /2.7 dBi / 0.9 dBi/ 2.7dBi max.
Efficiency 32% / 34% / 31% / 55% / 31% / 19% / 52% min.
VSWR 4.0 max.:1 / 3.0 max.:1 / 4.0 max.:1 / 3.0 max.:1
Power Handing 2W(cw)
Impedance 50 Ohms
Connector SMA Plug


Environmental & Mechanical Characteristics

Temperature: -30℃to +70℃
Humidity: 95% @55℃
Antenna Housing Color: Black
Antenna Housing Material: PC
Weight: 18.5g
Dimensions: 143.7mm(L)x22.5mm(W)x13.5mm(OD)
