GTT 5G FR1 Antenna For Japan
P/N: OA-L71-05-03A-C5-5G-J
RF Specification
| Frequency Range |
617~960 / 1427~1559 / 1710~2200 / 2300~2690 / 3300~4200 / 4400~5000 / 5150~5925 MHz |
| Polarization |
Linear, Vertical |
| HPBW / Horizontal |
360° |
| HPBW / Vertical |
60° |
| Peak Gain |
1.9 dBi / 0.5 dBi / 0.1 dBi / 2.7 dBi /2.7 dBi / 1.4 dBi/ 2.5dBi max. |
| Efficiency |
23% / 57% / 36% / 53% / 31% / 16% / 45% min. |
| VSWR |
4.0 max.:1 / 3.0 max.:1 / 4.0 max.:1 / 3.0 max.:1 |
| Power Handing |
2W(cw) |
| Impedance |
50 Ohms |
| Connector |
SMA Plug |
Environmental & Mechanical Characteristics
Temperature: -30℃to +70℃
Humidity: 95% @55℃
Antenna Housing Color: Black
Antenna Housing Material: PC
Weight: 18.5g

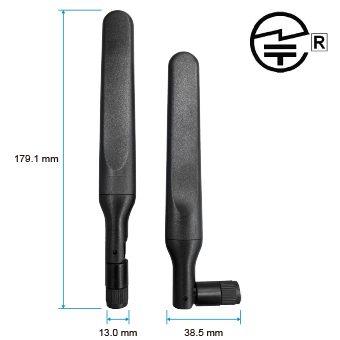

Dimensions: 179.7mm(L)x38.5mm(W)x13.0mm(OD)
