GTT 5G Antenna (Global)
P/N: OA-L71-17-04-C5-5G
Support Band
| LTE BAND |
FDD |
1,2,3,4,5,7,8,11,12,13,14,17,18,19,20,26,28,71,25,39,30 |
| TDD |
27,29,32,34,38,40,41,42,43,46 |
| FR1 |
FDD |
48 |
| TDD |
n1,n2,n3,n5,n7,n14,n28,n30,n41,n66,n71,n78,n79 |
| GNSS |
na |
1,2,3,4,5,7,8,11,12,13,14,17,18,19,20,26,28,71,25,39,30 |
RF Specification
| Frequency Range |
617~960 / 1427~1559 / 1710~2200 / 2300~2690 / 3300~3800 / 4400~5000 / 5150~5850 MHz |
| Polarization |
Linear, Vertical |
| HPBW / Horizontal |
360° |
| HPBW / Vertical |
60° |
| Peak Gain |
1.0 dBi / 0.3 dBi / 3.0 dBi / 3.9 dBi / 4.3 dBi / 4.4 dBi / 3.7 dBi max. |
| Efficiency |
34% / 59% / 60% / 69% / 67% / 63% / 62% min. |
| VSWR |
4.0 max.:1 / 2.5 max.:1 |
| Power Handing |
2W(cw) |
| Impedance |
50 Ohms |
| Connector |
SMA Plug |
Environmental & Mechanical Characteristics
Temperature: -30℃to +70℃
Humidity: 95% @55℃
Antenna Housing Color: Black
Antenna Housing Material: ABS
Weight: 52.0g

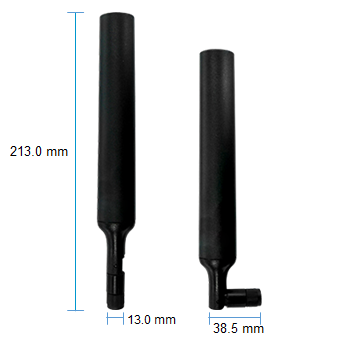

Dimensions: 213.0mm(L)x38.5mm(W)x13.0mm(OD)
