GTT 5G Antenna (Global)

5G antenna for home
P/N: OA-L71-12-05-C5-5G



GTT 5G Antenna (Global) - Grand-Tek


Description


GTT exclusively designs 4G/5G antenna for home. The connector uses SMA Plug. Threaded structure design, easy to install. 4G/5G antenna for home that can be easily installed by yourself. The joint can be bent at 90 degrees. It can be turned to a suitable angle according to indoor space requirements to send and receive connection signals. The antenna housing has a flat design and does not occupy much space. And supports 5G frequency bands in multiple regions (Europe, the United States, Japan, Hong Kong and Macao).



Support Band


LTE BAND FDD 1,2,3,4,5,7,8,12,13,14,25,26,28,30,66,71
TDD 41,42,43,48
FR1 FDD n1,n2,n3,n5,n7,n8,n12,n14,n28,n30,n66,n71
TDD n38,n41,n46,n77,n78,n79
GNSS na L1,L5


RF Specification


Frequency Range 617~960 / GNSS L1&L5 / 1710~2200 / 2300~2690 / 3300~4200 / 4400~5000 / 5150~5925 MHz
Polarization Linear, Vertical
HPBW / Horizontal 360°
HPBW / Vertical 60°
Peak Gain 0.4 dBi / 0.6 dBi / 2.9 dBi / 3.1 dBi / 3.5 dBi / 4.4 dBi / 4.6 dBi max.
Efficiency 33% / 61% / 65% / 67% / 71% / 62% / 68% min.
VSWR 4.0 max.:1 / 2.5 max.:1
Power Handing 2W(cw)
Impedance 50 Ohms
Connector SMA Plug


Environmental & Mechanical Characteristics

Temperature: -30℃to +70℃
Humidity: 95% @55℃
Antenna Housing Color: Black
Antenna Housing Material: PC
Weight: 52.0g

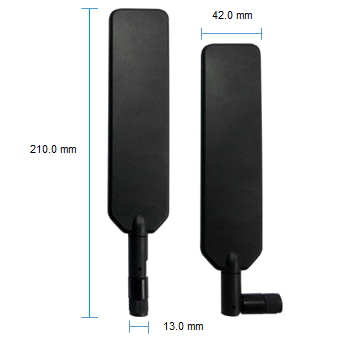

Dimensions: 210.0mm(L)x42.0mm(W)x13.0mm(OD)
