GTT 5G Antenna (Global)
SMA outdoor antenna
P/N: OA-L71-05-03AW-C5-5G
Description
4G/5G SMA outdoor antenna exclusively designed by GTT. It can be used in indoor or outdoor equipment. The connector uses SMA Plug. Threaded structure design, easy to install. 90-degree rotating shaft design. It is installed on the device and does not take up space.
And supports 5G frequency bands in multiple regions (Europe, the United States, Japan, Hong Kong, and Macao).
Support Band
| LTE BAND |
FDD |
1,2,3,4,5,7,8,12,13,14,25,26,28,30,66,71 |
| TDD |
41,42,43,48 |
| FR1 |
FDD |
n1,n2,n3,n5,n7,n8,n12,n14,n28,n30,n66,n71 |
| TDD |
n38,n41,n46,n77,n78,n79 |
| GNSS |
na |
L1,L5 |
RF Specification
| Frequency Range |
617~960 / GNSS L1&L5 / 1710~2200 / 2300~2690 / 3300~4200 / 4400~5000 / 5150~5925 MHz |
| Polarization |
Linear, Vertical |
| HPBW / Horizontal |
360° |
| HPBW / Vertical |
60° |
| Peak Gain |
2.8 dBi / 2.4 dBi / 2.9 dBi / 3.9 dBi /3.5 dBi / 4.0 dBi max. |
| Efficiency |
42% / 50% / 54% / 68% / 43% / 53% min. |
| VSWR |
4.0 max.:1 / 2.5 max.:1 |
| Power Handing |
2W(cw) |
| Impedance |
50 Ohms |
| Connector |
SMA Plug |
Environmental & Mechanical Characteristics
Temperature: -30℃to +70℃
Humidity: 95% @55℃
Antenna Housing Color: Black
Antenna Housing Material: Material: PC
Weight: 25.3g

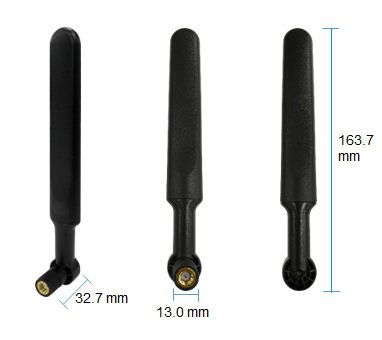

Dimensions: 163.7mm(L)x32.7mm(W)x13.0mm(OD)
